Specifications:
Note: This DSI cable is for Raspberry Pi Official 7inch DSI / OSOYOO 7"/3.5" IPS DSI screen, and not suitable for OSOYOO 4.3"/5"/7" V3.1 DSI

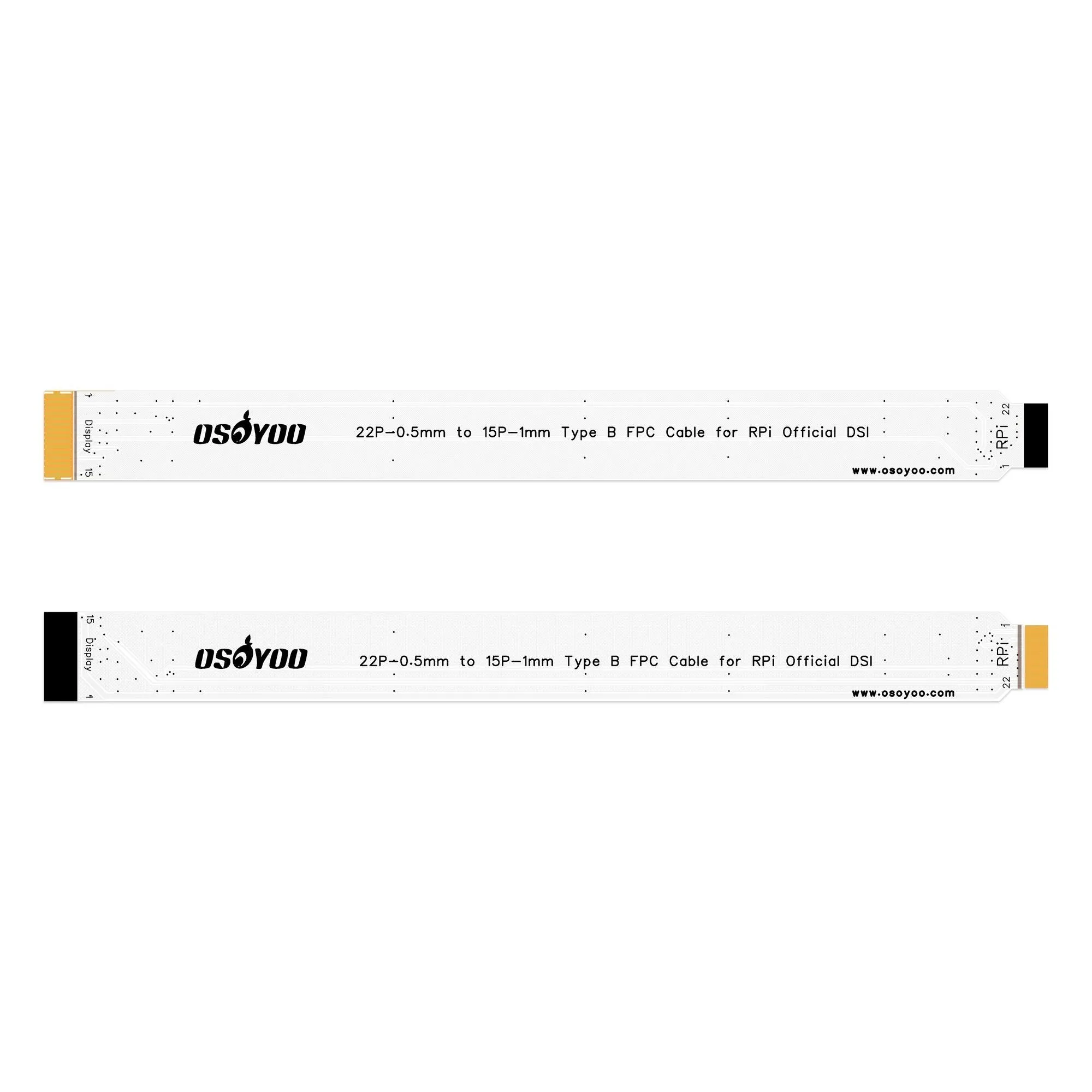

Connection Points are on opposite side (Type B)
High anti-interference, high flexibility and ultra-thin, soft, flexible and compact.

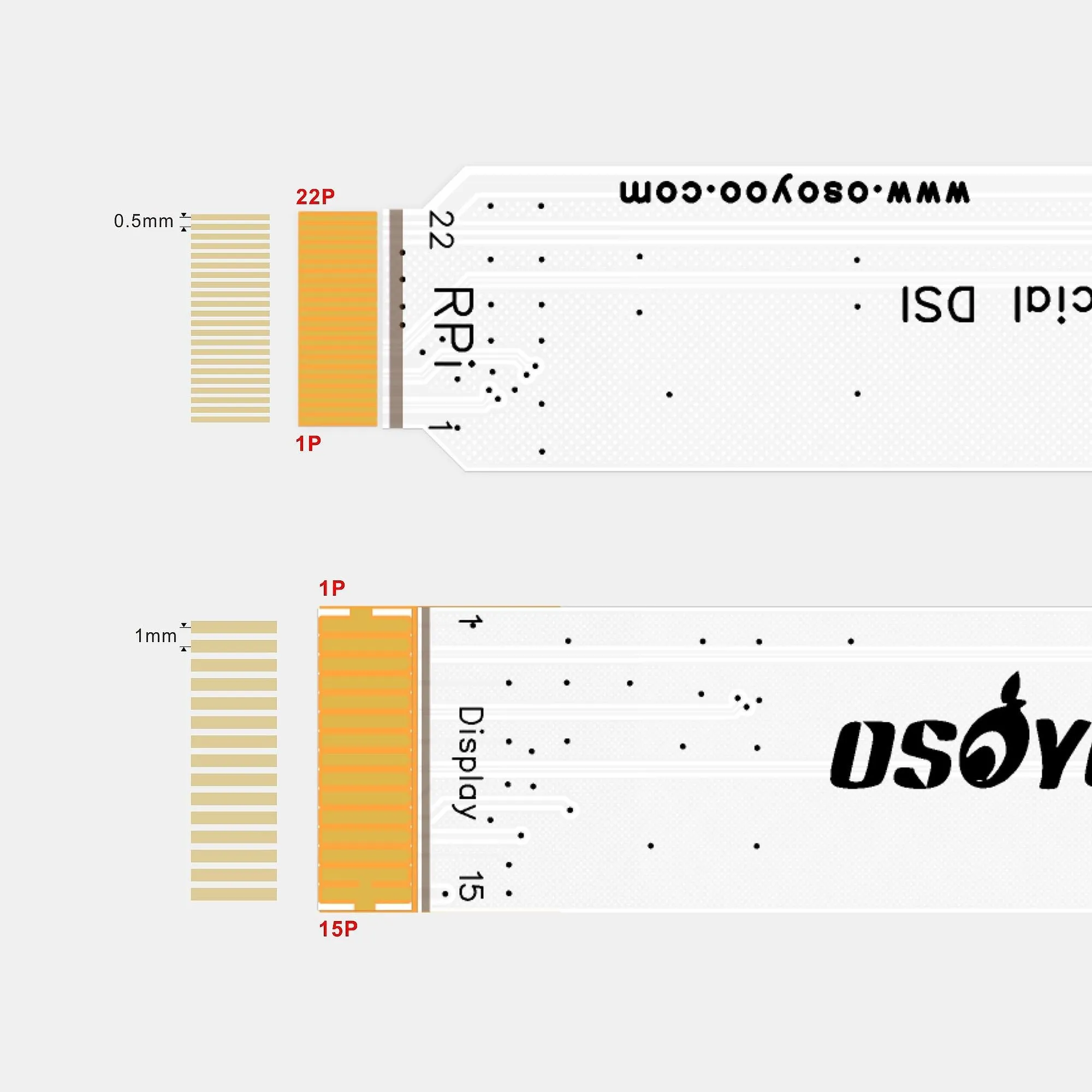

Pin Number: one end is 15 Pin 1.0mm Pitch interface and the other end is 22 Pin 0.5mm interface.
Material: PET

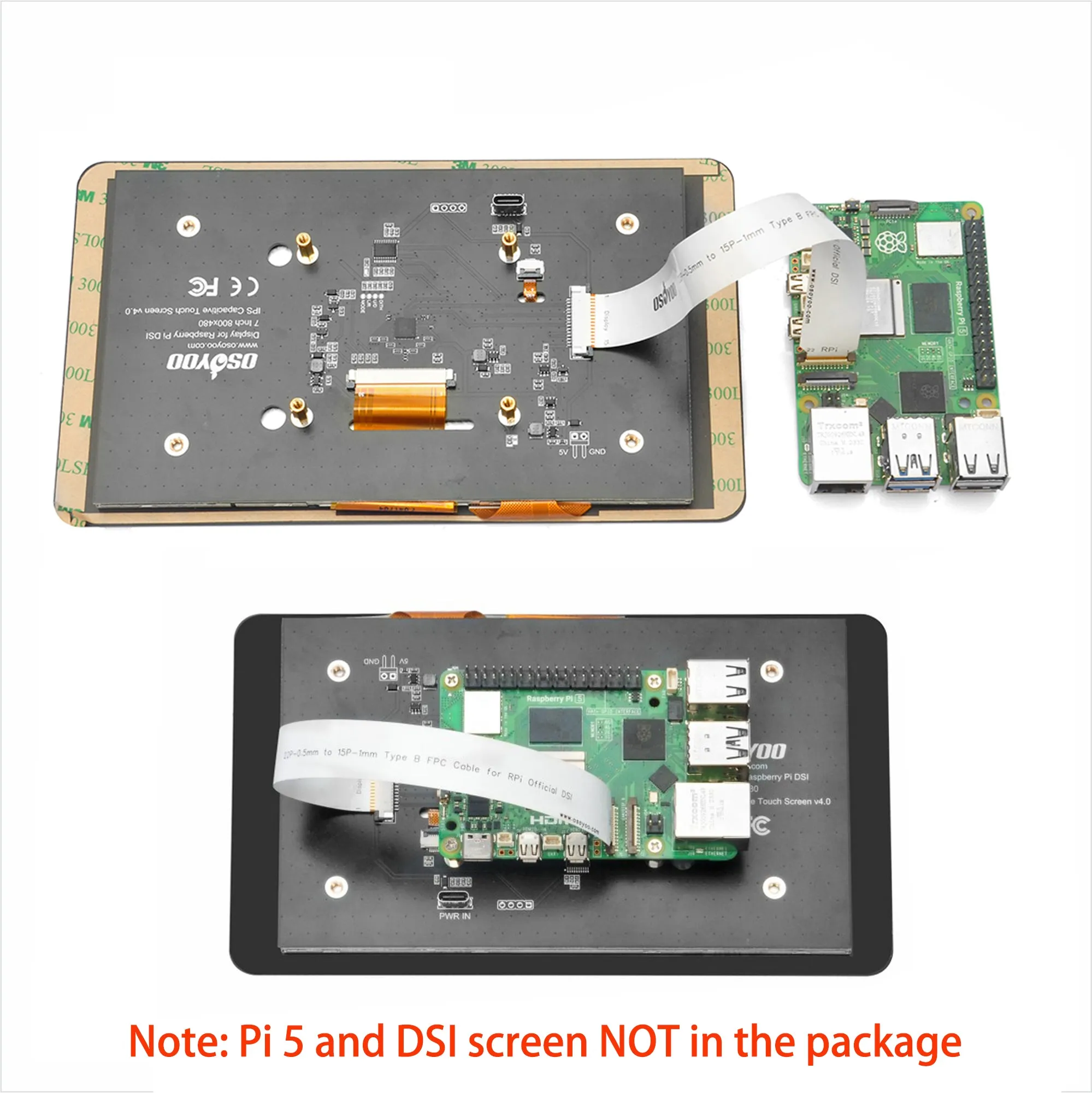

Compatibility: for Raspberry Pi Official 7inch DSI / OSOYOO 7"/3.5" IPS DSI screen, and not suitable for OSOYOO 4.3"/5"/7" V3.1 DSI

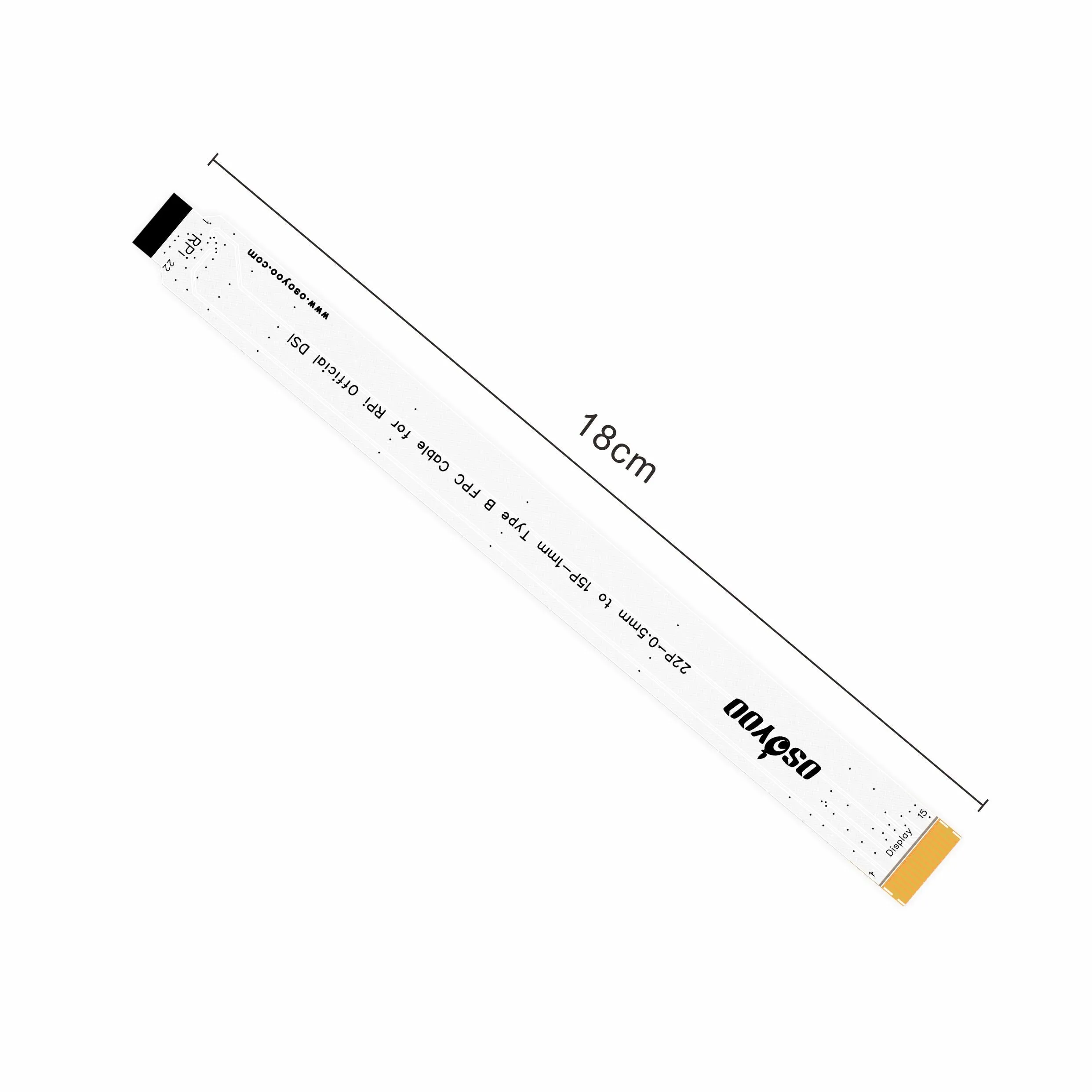

Length: 18cm
Weight: approx. 5g/pc
Package list:

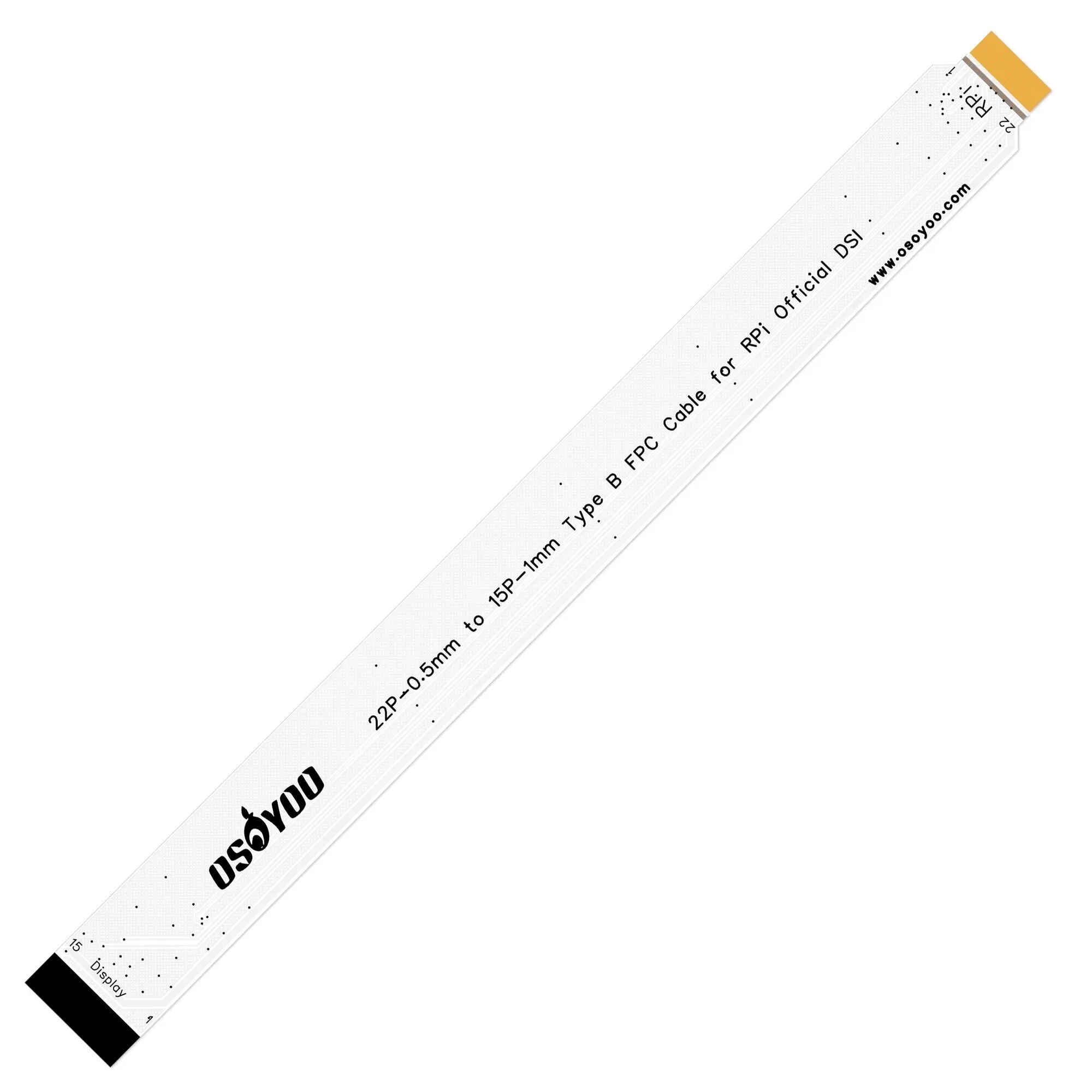

1 x 18cm Flex extension cable for Raspberry Pi Official 7inch DSI to Raspberry Pi 5
