Specifications:
Note: This DSI cable is only suitable for OSOYOO 4.3inch IPS, 5inch IPS, 7Inch TN DSI screen, and not suitable for other DSI screen

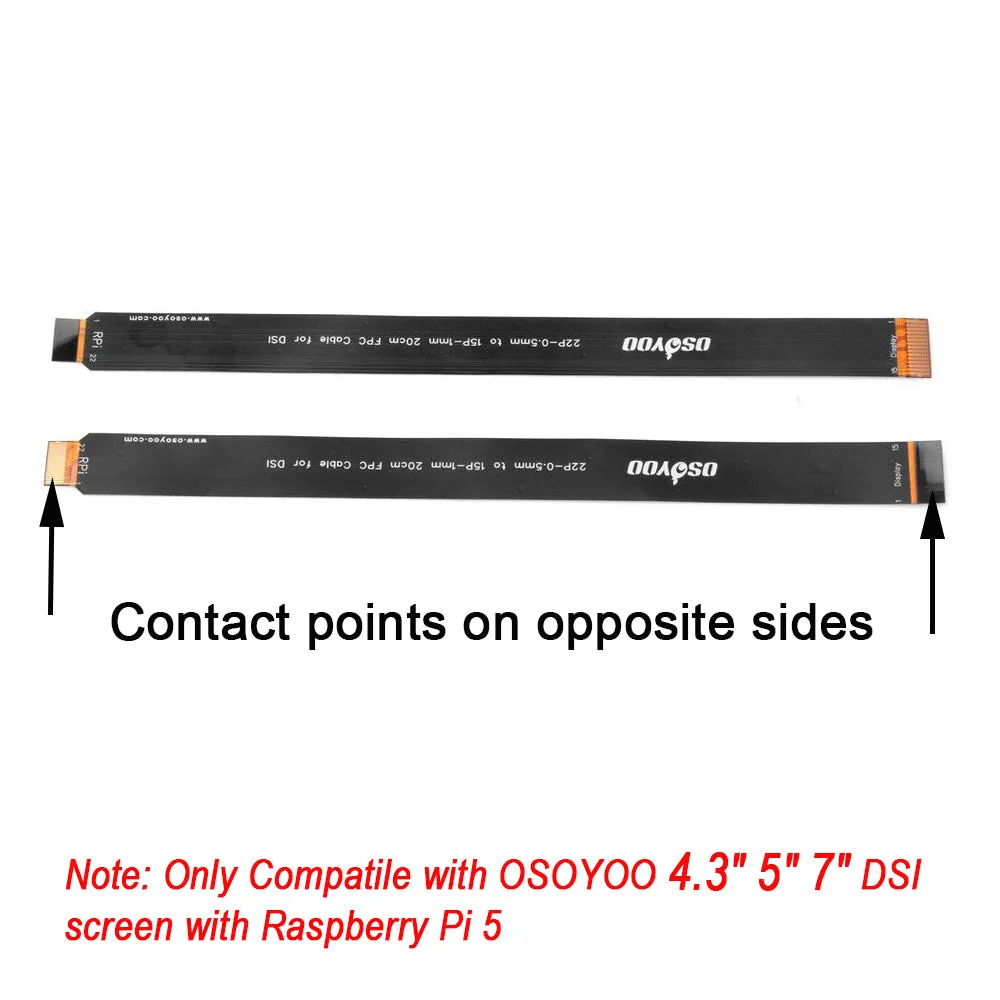

Connection Points are on opposite side (Type B)
High anti-interference, high flexibility and ultra-thin, soft, flexible and compact.

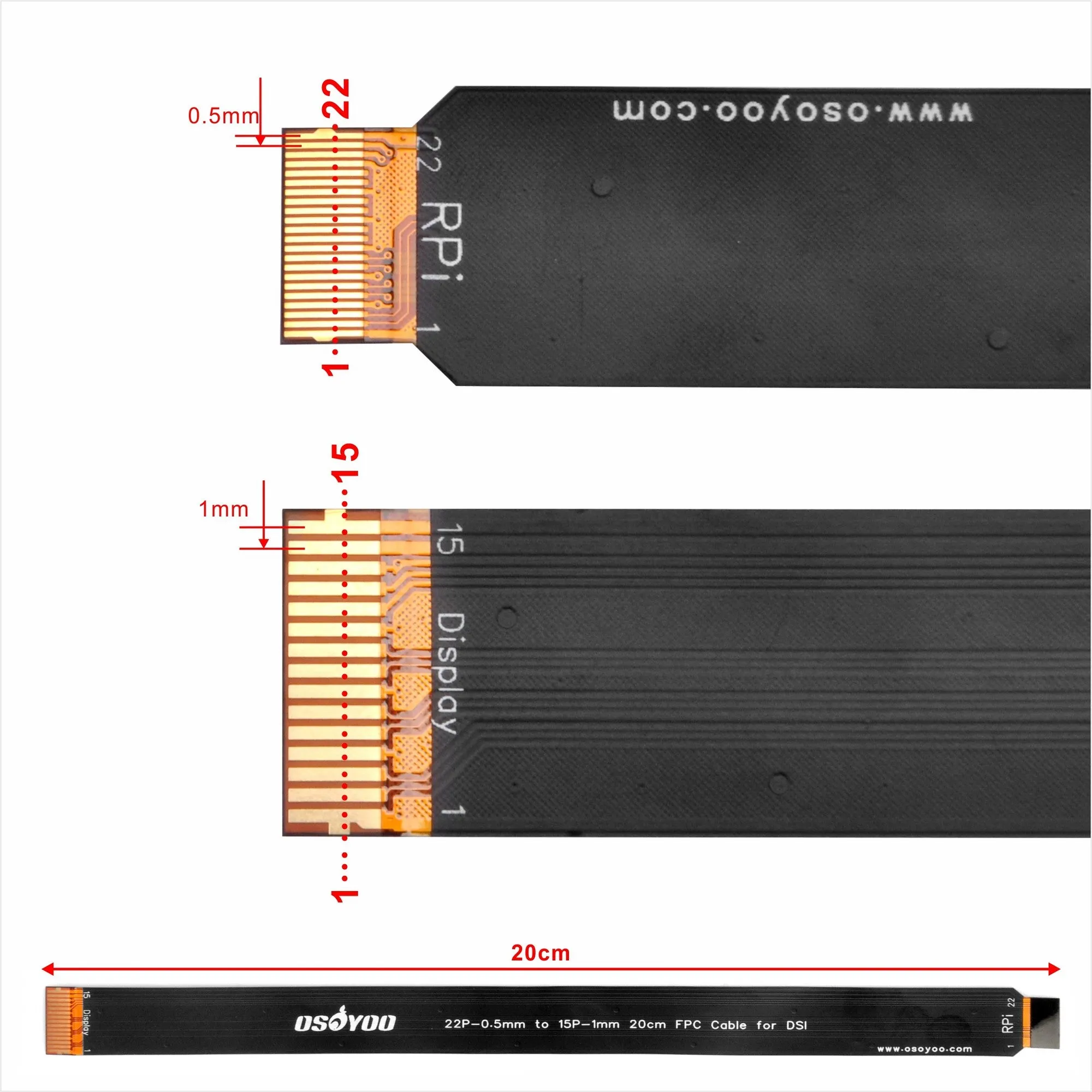

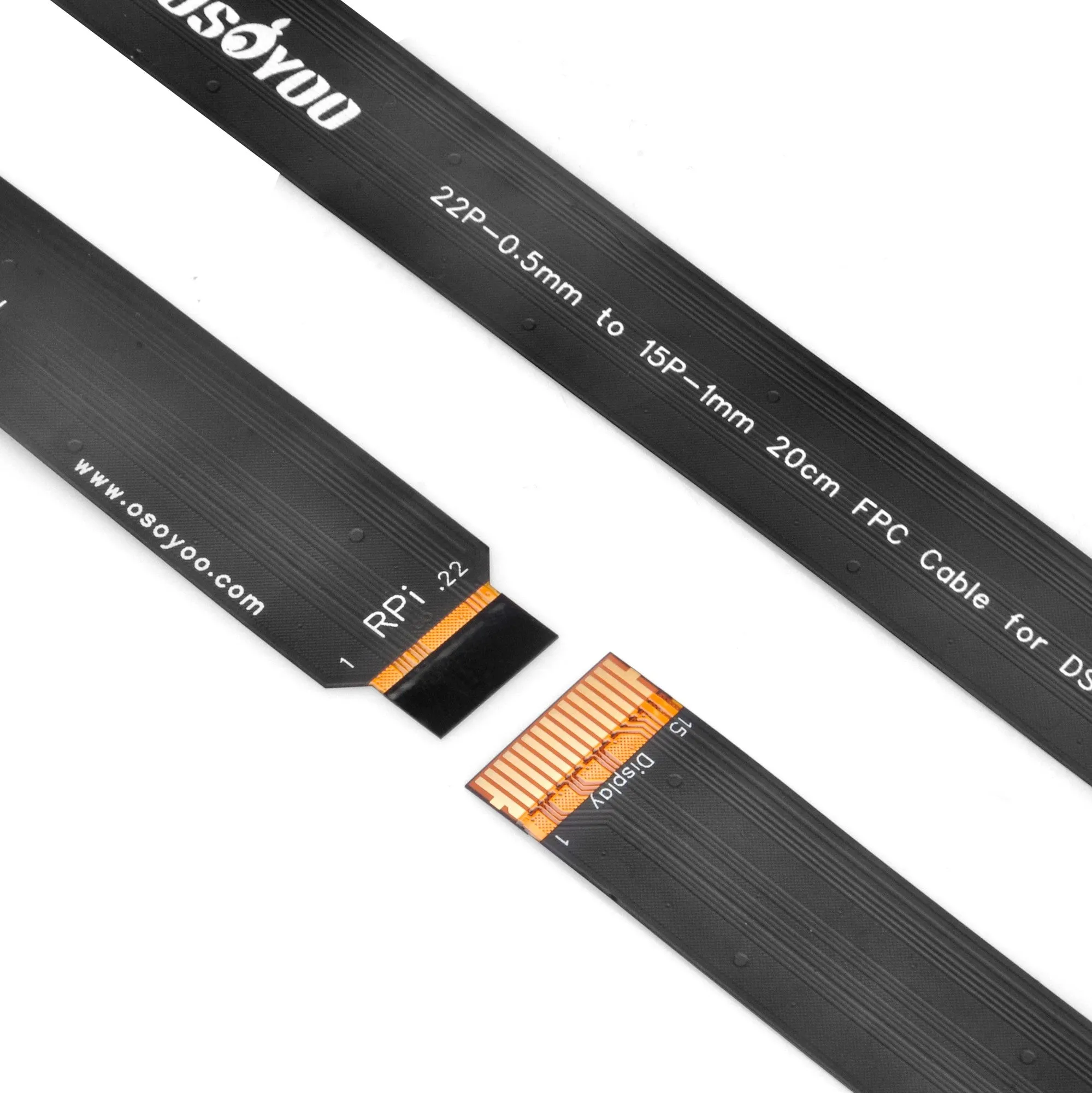

Pin Number: one end is 15 Pin 1.0mm Pitch interface and the other end is 22 Pin 0.5mm interface.
Material: PET

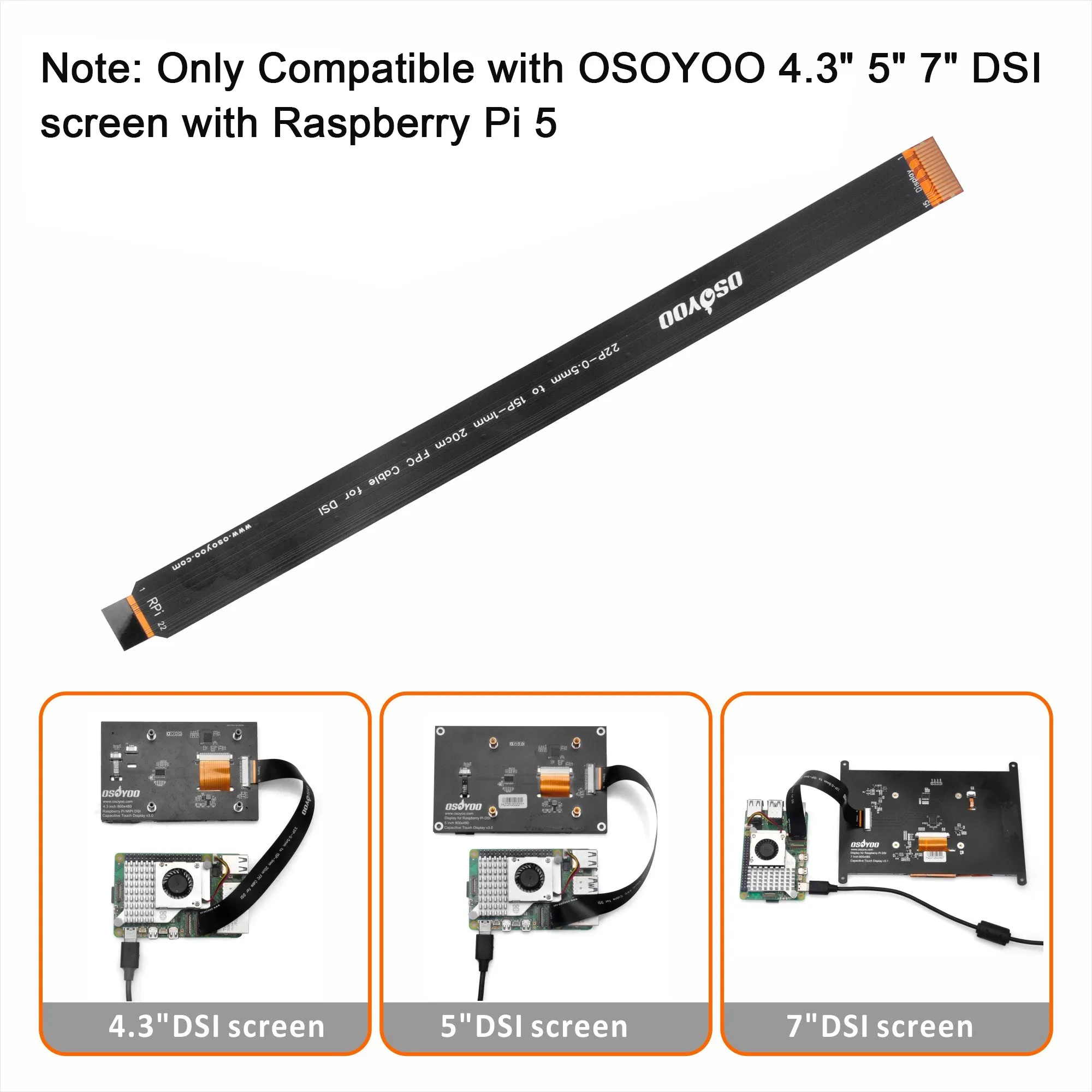

Compatibility: Only for OSOYOO 4.3"/5"/7" V3.1 DSI screen to Raspberry Pi 5
Length: 20cm
Weight: approx. 5g/pc
Package list:

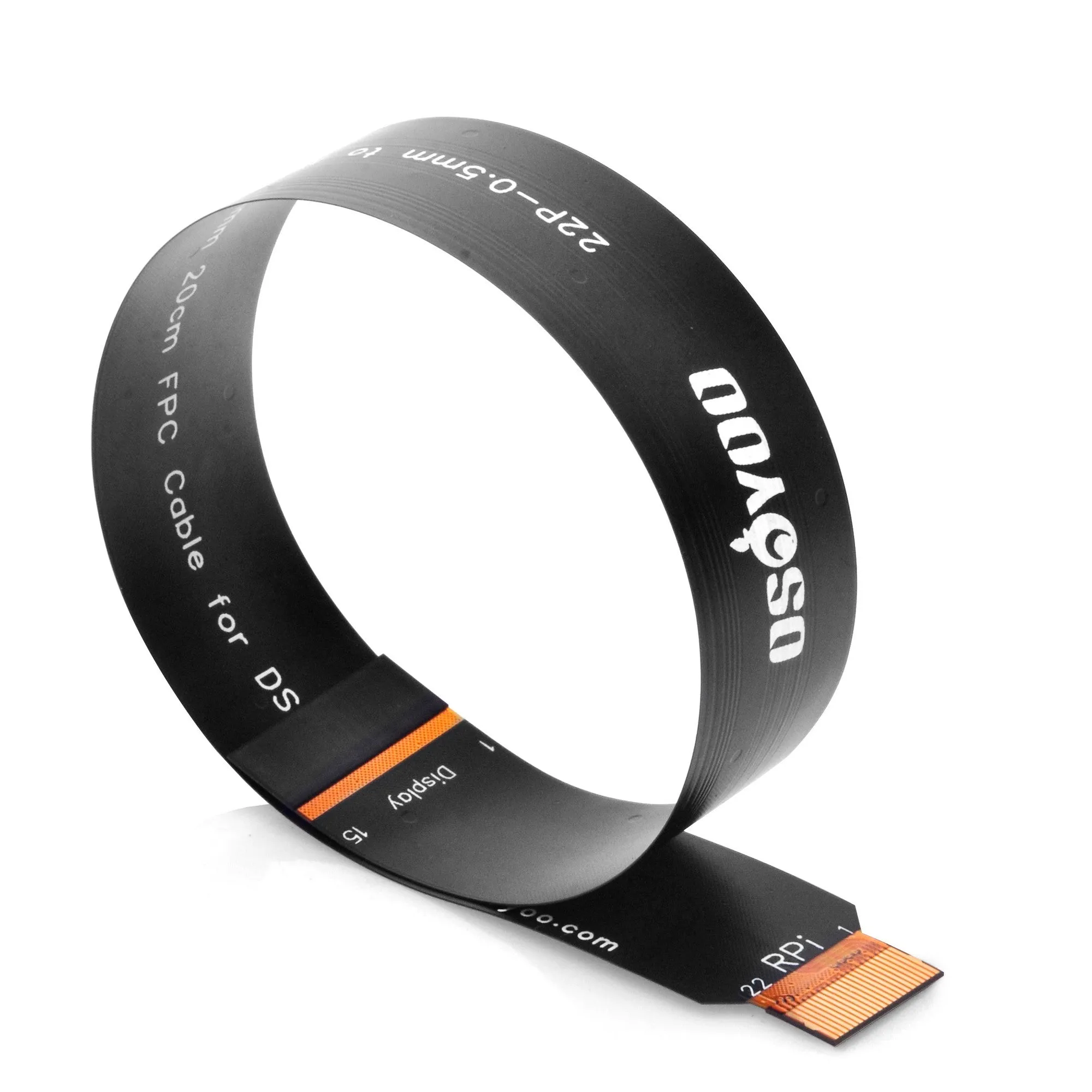

1 x 20cm Flex extension cable for OSOYOO DSI screen to Raspberry Pi 5
